LineWatch LLT
The LineWatch LLT Live Line Tester from CO7 Technologies stands as the most accurate hot stick power meter specifically engineered for the modern distribution grid. Designed for live line testing on lines up to 34.5 kV, it precisely measures phase-to-neutral voltage, current, power flow, and phase angle. Its unparalleled precision (0.1% for voltage, 0.5% for current) also uniquely simplifies the in-field calibration of your LineWatch M sensors, combining crucial functions in one portable device and enhancing efficiency through real-time wireless communication.
LineWatch LLT
Features & Benefits:
-
High-Precision Measurement: As the industry's most accurate hot stick power meter and live line tester available, the LLT offers 0.1% class precision for voltage measurements, 0.5% for current, and 0.6% for power factor. This trustworthy data ensures reliable, on-site decision-making in critical live line testing scenarios, giving you confidence in every reading.
-
Multi-Functional Capabilities: Unlike many basic live line testers, the LLT delivers real-time, precise measurements of current, voltage, phase angle, and both real and reactive power. This comprehensive data enhances visibility into high-voltage system performance, robustly supporting efficient live line testing and informed decision-making on critical grid assets.
-
Automated Calibration Tool: Beyond its core role as a powerful live line tester, the LLT uniquely offers automated calibration for your medium voltage sensors (specifically LineWatch M) directly in the field. This critical function drastically enhances efficiency and minimizes manual calibration needs, ensuring accuracy across your entire sensor network.
Applications:
-
Capacitor Bank Management: Use the LineWatch LLT Live Line Tester to precisely measure voltage, current, and power factor at capacitor banks, ensuring optimal reactive power compensation directly on live lines without service interruption.
​
-
Transformer Testing and Monitoring: Utilize the LLT to check the real-time power flow, phase angle, and current at MV transformers during maintenance, providing vital insights into asset health and performance while the system remains energized.
​​
-
Grid Performance Verification: Perform spot checks on phase-to-neutral voltage and current on MV lines to confirm the integrity of the distribution grid.
​​
-
Switchgear Maintenance: Employ the LLT during maintenance of MV switchgear to ensure that all components function properly under live conditions, enhancing safety and operational reliability.
​​
-
Load Analysis: Conduct accurate load measurements at critical points in the MV network with this advanced live line measurement tool to analyze power flow patterns and precisely assess equipment loading for optimal resource allocation and planning.
Software Tools:
-
On-Site Monitoring Interface: Provides real-time monitoring of key electrical parameters, such as voltage, current, power factor, and phase angle, ensuring precise data collection for diagnostics.
​
-
Automated Calibration Application: Designed for efficient MV sensors calibration in the field, reducing manual effort and ensuring accuracy in calibration processes.
Why Choose the LineWatch LLT Live Line Tester? Your Unmatched Advantage
In the demanding environment of modern distribution grids, a standard live line tester often falls short. The LineWatch LLT stands apart, offering capabilities that translate directly into operational superiority:
​
-
Unrivaled Accuracy for Critical Decisions: While other testers provide basic readings, the LineWatch LLT delivers 0.1% voltage and 0.5% current precision. This near-revenue-grade accuracy is paramount for accurate power flow analysis, reliable fault diagnostics, and precise load assessments.
-
Integrated Sensor Calibration: The LLT isn't just a tester, it's a live line tester designed as an automated calibration tool for our LineWatch M sensors, streamlining your entire monitoring and maintenance workflow.
-
Comprehensive Data in One Device: Go beyond simple voltage checks. Our Live Line Tester provides current, power flow, and phase angle, giving you a complete, real-time electrical picture from a single hot stick.
-
Wireless & Real-time Insights: Effortlessly connect wirelessly to tablets or laptops for immediate data analysis directly in the field, boosting efficiency and empowering informed, on-site decision-making.
-
Robust & Reliable: Engineered for the harsh realities of utility work, the LLT ensures consistent, trustworthy performance in all weather conditions.
LineWatch LLT Live Line Tester: Frequently Asked Questions (FAQ)
-
What is the primary function of the LineWatch LLT Live Line Tester?
The LineWatch LLT is a high-precision hot stick power meter designed for measuring voltage, current, power flow, and phase angle on live medium voltage (MV) lines, and also functions as an automated calibration tool for LineWatch M sensors. -
How accurate are the measurements from the LineWatch LLT?
The LineWatch LLT offers exceptional accuracy, with 0.1% for voltage measurements and 0.5% for current measurements, making it one of the most precise live line testers available for utility applications.
​​
-
Can the LineWatch LLT be used for low voltage lines as well?
The LineWatch LLT is primarily designed for direct measurement on overhead live lines via a hot stick up to 34.5 kV. -
How does the LLT assist with LineWatch M sensor calibration?
The LineWatch LLT provides highly accurate voltage and phase angle measurements in real-time, which are used to quickly and easily calibrate.
​LineWatch M sensors in the field, significantly reducing manual effort and ensuring accuracy.

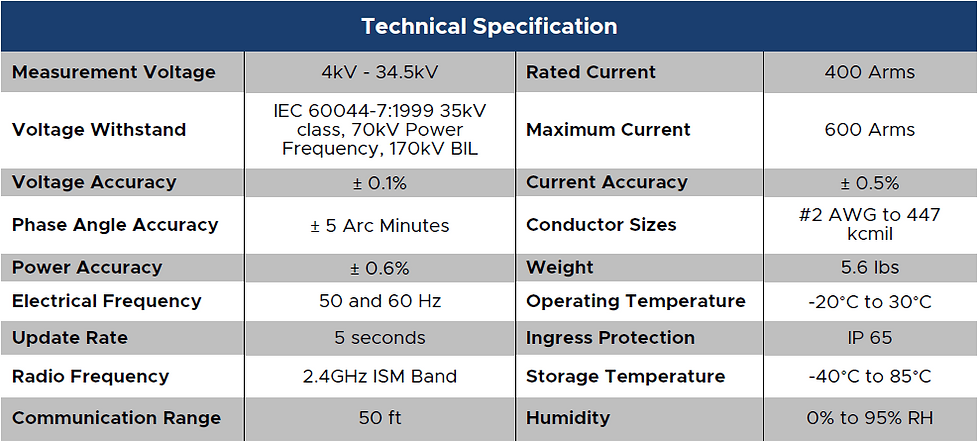

TECHNICAL CHARACTERISTICS:
